AMP Butt splices

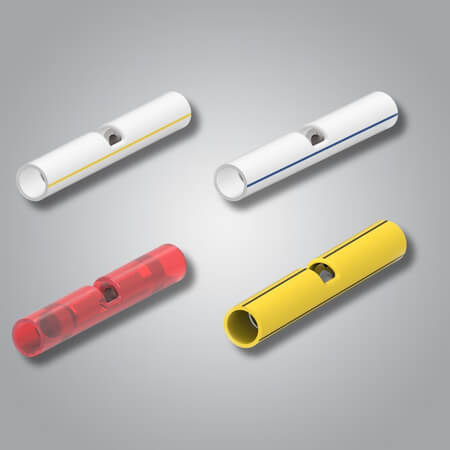

Butt splices from TE Connectivity are available with PVC (PLASTI-GRIP) or Nylon (PIDG) insulation. The insulation sleeves are color coded on wire range for easy visual identifcation.
The product series
Click on a product to view more product details
PLASTI-GRIP (PVC insulation) butt splices
| Bulk packaging | Small packaging | Wire range (mm²) | Length (mm) | Insulation diameter | Color |
|---|---|---|---|---|---|
| 321026 | 5-1377173-1 | 0.10-0.40mm² | 15.75mm | 2.03mm | Yellow |
| 34070 | 5-1377173-2 | 0.25-1.60mm² | 27.33mm | 3.56mm | Red |
| 34071 | 5-1377173-3 | 1.00-2.60mm² | 27.05mm | 4.32mm | Blue |
| 34072 | 5-1377173-4 | 2.60-6.60mm² | 29.46mm | 5.84mm | Yellow |
PIDG ( Nylon insulation) butt splices
| Bulk packaging | Small packaging | Wire range (mm²) | Length (mm) | Insulation diameter | Color |
|---|---|---|---|---|---|
| 323994 | 1-1377174-9 | 0.10-0.25mm² | 22.61mm | 2.08mm | Yellow |
| 323975 | – | 0.15-0.60mm² | 26.29mm | 2.54mm | White |
| 320559 | 2-1377174-1 | 0.25-1.60mm² | 32.13mm | 3.18mm | Red |
| 320562 | 2-1377174-2 | 1.00-2.60mm² | 32.13mm | 3.81mm | Blue |
| 320570 | 2-1377174-3 | 2.60-6.60mm² | 42.06mm | 5.59mm | Yellow |
PLASTI-GRIP (PVC insulation) butt splices
| Bulk packaging | Small packaging | Wire range (mm²) | Length (mm) | Insulation diameter | Color |
|---|---|---|---|---|---|
| 34132 | 5-1377173-5 | 0.25-1.60mm² | 19.30mm | 3.56mm | Red |
| 34134 | 5-1377173-6 | 1.00-2.60mm² | 19.30mm | 4.32mm | Blue |
| 34136 | 5-1377173-7 | 2.60-6.60mm² | 22.10mm | 5.84mm | Yellow |
