QTVR heat tracing from nVent Raychem

nVent RAYCHEM QTVR heat tracing cable is suitable for frost protection on larger pipes with a high heat-loss and aplications on temperature maintenance without steam cleaning requirements up to 225 °F/110 °C. De outer sheath made from fluoropolymer (-CT) offers a higher chemical resistance against agressive organic matters and corrosive matters.

nVent Raychem QTVR verwarmingskabel

Characteristics QTVR nVent RAYCHEM heat tracing cable:

  • Simplified design for explosive envirnements T-4 class
  • Quick installation: cut on size, overlaps allowed, markings per meter, user-friendly connection kits
  • Safe and efficient in use: no overheating, uniform pipe temperatures, energy saving technology
  • Reliable and has a proven long life expectancy: 10 years waranty available, maintenance free
datasheet
ask your question

QTVR2-CT heat tracing cable

  • Voltage: 200-277 Vac

  • Qualified for: ATEX, non-ATEX

  • Outer sheath: Fluoropolymer

  • Maximum continuous exposure temperature: 110°C

  • Maximum intermittent or incidental exposure temperature: 110°C

Type Output
10QTVR2-CT 38 W/m
15QTVR2-CT 51 W/m
20QTVR2-CT 64 W/m

QTVR1-CT heat tracing cable

  • Voltage: 100-130 Vac

  • Qualified for: ATEX, non-ATEX

  • Outer sheath: Fluoropolymer

  • Maximum continuous exposure temperature: 110°C

  • Maximum intermittent or incidental exposure temperature: 110°C

Type Output
10QTVR1-CT 39 W/m
15QTVR1-CT 52 W/m
20QTVR1-CT 66 W/m

Product choice and material calculation nVent RAYCHEM

If you are looking for a qualitative heat tracing cable, you’re at the right place with Idétrading Electronics! Do not hesitate to contact us in case you require more product information, or if you would like to receive a material calculation.

nVent RAYCHEM partner and supplier

Overview QTVR nVent RAYCHEM heat tracing cable

View all types

  •

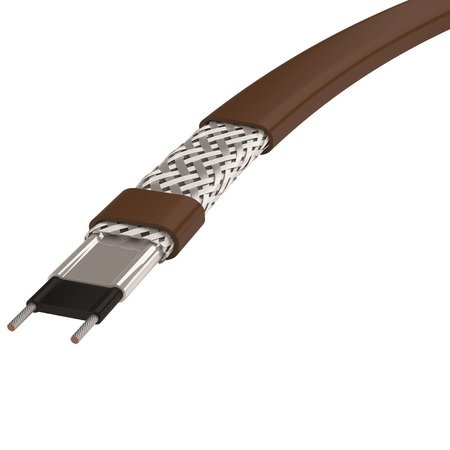

    10QTVR1-CT Chemelex Raychem heating cable

    • Type: Self-regulating heating cable
    • Application: Frost protection of large pipes or vessels with high heat loss for process temperature maintenance applications up to 110°C
    • Construction: Self-limiting parallel
    • Maximum maintenance temperature: 110°C
    • Heating power: 38W/m
    • Nominal voltage: 110VAC
  •

    10QTVR2-CT Chemelex Raychem heating cable

    • Cable type: Self-regulating heating cable
    • Part number: 391991-000
    • Temperature class: T4
    • Certification: ATEX
    • Application: Frost protection and temperature maintenance
  •

    15QTVR1-CT Chemelex Raychem heating cable

    • Type: Self-regulating heating cable
    • Application: Frost protection of large pipes or vessels with high heat loss for process temperature maintenance applications up to 110°C
    • Construction: Self-limiting parallel
    • Maximum maintenance temperature: 110°C
    • Heating power: 51W/m
    • Nominal voltage: 110VAC
  • 15QTVR2-CT nVent RAYCHEM heating cable

    15QTVR2-CT nVent RAYCHEM heating cable

    Self-regulating heating cables suitable for frost protection of large pipes or vessels with high heat loss for process temperature maintenance applications up to 110°C.

    – Self-limiting parallel

    – Max. holding temperature : 110°C

    – Heating power : 51W/m

    – Nom. voltage : 230VAC

  •

    20QTVR1-CT Chemelex Raychem heating cable

    • Type: Self-regulating heating cable
    • Application: Frost protection of large pipes or vessels with high heat loss for process temperature maintenance applications up to 110°C
    • Construction: Self-limiting parallel
    • Maximum maintenance temperature: 110°C
    • Heating power: 64W/m
    • Nominal voltage: 110VAC
  •

    20QTVR2-CT Chemelex Raychem heating cable

    • Cable type: Self-regulating heating cable
    • Part number: 988967-000
    • Temperature class: T4
    • Certification: ATEX
    • Application: Frost protection and temperature maintenance
