nVent Raychem HTV verwarmingskabel

HTV heat tracing from nVent RAYCHEM

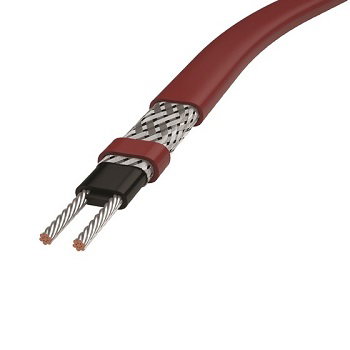

HTV heat tracing from nVent RAYCHEM is designed for frost protection or temperature maintenance of pipes, vessels and tanks up to 205°C continuous temperature with a maximum intermittent temperature of 260°C. the HTV heat tracing cable has a solid construction with a heating core with a high output (HPR) and under pressure extruded insulation. It is integrated with a robust metal wickerwork and a higher chemical resistance from fluoropolymer.

Characteristics HTV heat tracing:

  • Heating core with high power retention (HPR)
  • Output retention: minimum of 95% after 10 years
  • Design life: 30 years or more, dependant on application
  • Simplified design in explosive environments: T2 and T3
  • Longer circuit lengths due to larger cross-sectional conductors
  • Quick installation: cut on size, overlaps allowed, markings per meter, user-friendly connection kits
  • Safe and efficient in use: no overheating, uniform pipe temperatures, energy saving technology
  • Reliable and has a proven long life expectancy: 10 years waranty available, maintenance free

nVent RAYCHEM HTV1-CT series

  • Voltage: 90-130 V

  • Qualified for: ATEX non-ATEX

  • Outer sheath: High temperature fluoropolymer

  • Maximum cintinuous exposure temperature: 205°C

  • Maximum intermittent or incidental exposure temperature: 260°C

Type Output
3HTV1-CT 9 W/m
5HTV1-CT 16 W/m
8HTV1-CT 28 W/m
10HTV1-CT 32 W/m
12HTV1-CT 39 W/m
15HTV1-CT 49 W/m
20HTV1-CT 65 W/m

nVent RAYCHEM HTV2-CT series

  • Voltage: 190-277 Vac

  • Qualified for: ATEX, non-ATEX

  • Outer sheath: High temperature fluoropolymer

  • Maximum continuous exposure temperature: 205°C

  • Maximum intermittent or incidental exposure temperature: 260°C

Type Output
3HTV2-CT 9 W/m
5HTV2-CT 16 W/m
8HTV2-CT 25 W/m
10HTV2-CT 32 W/m
12HTV2-CT 38 W/m
15HTV2-CT 48 W/m
20HTV2-CT 64 W/m

Product choice and material calculation nVent RAYCHEM

If you are looking for a qualitative heat tracing cable, you’re at the right place with Idétrading Electronics! Do not hesitate to contact us in case you require more product information, or if you would like to receive a material calculation.

nVent RAYCHEM partner and supplier

Overview Raychem HTV heat tracing cable

View all types

  • De nVent RAYCHEM HTV zelfregelende verwarmingskabel is ontworpen voor vorstbescherming of procestemperatuur onderhoud van leidingen en vaten met zeer hoge continuïteit bedrijfstemperaturen (205 ° C).

    – Zelfbegrenzend parallel

    – Max. houdtemperatuur : 205°C

    – Verwarmingsvermogen : 9W/m

    – Nom. spanning : 230VAC

  • nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C.

    – Self-limiting parallel

    – Max. holding temperature : 205°C

    – Heating power : 16W/m

    – Voltage : 230VAC

  • nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C.

    – Self-limiting parallel

    – Max. holding temperature : 205°C

    – Heating power : 25W/m

    – Voltage : 230VAC

  • nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C.

    – Self-limiting parallel

    – Max. holding temperature : 205°C

    – Heating power : 32W/m

    – Voltage : 230VAC

  • nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C.

    – Self-limiting parallel

    – Max. holding temperature : 205°C

    – Heating power : 38W/m

    – Voltage : 230VAC

  • nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C.

    – Self-limiting parallel

    – Max. holding temperature : 205°C

    – Heating power : 48W/m

    – Voltage : 230VAC
