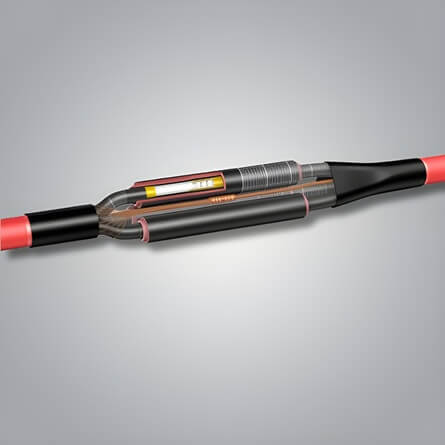

EPKJ Raychem Kabelverbindingen voor Middenspanning
EPKJ Raychem kabelverbindingen zijn geschikt voor een breed scala aan connectoren en kabelafmetingen zonder beperkingen op de houdbaarheid. Deze betrouwbare en hoogwaardige verbindingen zijn toepasbaar op polymeer-, rubber- en geïsoleerde MIND-kabels, zowel enkeladerig als drieaderig, gepantserd en niet-gepantserd.
Conform de CENELEC- en IEC-normen bieden EPKJ kabelverbindingen veiligheid en langdurige prestaties in middenspanningsapplicaties. Vertrouw op de bewezen technologie van Raychem voor efficiënte en duurzame kabelverbindingen voor uw netwerk.
Productafmetingen Raychem EPKJ
Low Voltage Heat-shrink control cable joints up to 1 kV – klik door om direct de producten hiervan te zien
| Type | Aantal aderige kabelverbinding | Maat geleider (mm2) |
|---|---|---|
| EPKJ-0228-(S10) | 4 | 1.5 – 6 |
| EPKJ-0235-(S10) | 4 | 6 – 16 |
| EPKJ-0242-(S10) | 4 | 16 – 35 |
| EPKJ-0249-(S5) | 4 | 35 – 70 |
| EPKJ-0256-(S5) | 4 | 70 – 150 |
| EPKJ-0263-(S5) | 4 | 150 – 300 |
| EPKJ-0130-(S5) AR3 | 4 | 25-50 |
| EPKJ-0137-(S5) AR4 | 4 | 70-150 |
| EPKJ-0144-(S1) AR5 | 4 | 185-300 |
Medium Voltage Heat-shrink joints up to 17,5 kV – klik door om direct de producten hiervan te zien
| Type | Aderig van – naar | Maat geleider (mm2) |
|---|---|---|
| EPKJ-17A/1XU-3XU | Single core to three core | 35 – 70 |
| EPKJ-17B/1XU-3XU | Single core to three core | 95 – 185 |
| EPKJ-17C/1XU-3XU | Single core to three core | 240 – 400 |
| EPKJ-17A/3XU-3XU | Three core to three core | 35 – 70 |
| EPKJ-17B/3XU-3XU | Three core to three core | 95 – 185 |
| EPKJ-17C/3XU-3XU | Three core to three core | 240 – 400 |
| EPKJ-17A/3XU-3XU-W | Three core to three core armoured | 35 – 70 |
| EPKJ-17B/3XU-3XU-W | Three core to three core armoured | 95 – 185 |
| EPKJ-17C/3XU-3XU-W | Three core to three core armoured | 240 – 400 |
| EPKJ-17A/1XU-1HL | XLPE to paper insulated lead covered single core | 35 – 70 |
| EPKJ-17B/1XU-1HL | XLPE to paper insulated lead covered single core | 95 – 185 |
| EPKJ-17C/1XU-1HL | XLPE to paper insulated lead covered single core | 240 – 400 |
| EPKJ-17D/1XU-1HL | XLPE to paper insulated lead covered single core | 500 – 630 |
| EPKJ-17C/1HL-1HL | Paper insulated lead covered single core | 240 – 400 |
| EPKJ-17D/1HL-1HL | Paper insulated lead covered single core | 500 – 630 |
| EPKJ-17A/3XU-3SB | XLPE to paper insulated lead covered 3-core unarmoured | 35 – 70 |
| EPKJ-17B/3XU-3SB | XLPE to paper insulated lead covered 3-core unarmoured | 95 – 185 |
| EPKJ-17C/3XU-3SB | XLPE to paper insulated lead covered 3-core unarmoured | 240 – 400 |
| EPKJ-17A/3XU-3SB-W | XLPE to paper insulated lead sheathed 3-core armoured | 25 – 50 |
| EPKJ-17B/3XU-3SB-W | XLPE to paper insulated lead sheathed 3-core armoured | 70 – 150 |
| EPKJ-17C/3XU-3SB-W | XLPE to paper insulated lead sheathed 3-core armoured | 185 – 300 |
| EPKJ-17A/3SB-3SB-W | Paper insulated lead sheathed 3-core armoured | 25 – 50 |
| EPKJ-17B/3SB-3SB-W | Paper insulated lead sheathed 3-core armoured | 70 – 150 |
| EPKJ-17C/3SB-3SB-W | Paper insulated lead sheathed 3-core armoured | 185 – 300 |
| EPKJ-17B/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 95 – 185 |
| EPKJ-17A/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 35 – 70 |
| EPKJ-17B/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 95 – 185 |
| EPKJ-17C/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 240 – 400 |
| EPKJ-17D/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 500 – 630 |
Medium Voltage Heat-shrink joints up to 24 kV – klik door om direct de producten hiervan te zien
| Type | Aderig van – naar | Maat geleider (mm2) |
|---|---|---|
| EPKJ-24D/1XU-3XU | XLPE TO XLPE | 300 – 400 |
| EPKJ-24D/3XU-3XU | XLPE TO XLPE | 300 – 400 |
| EPKJ-24B/3XU-3XU-W | XLPE TO XLPE | 35 – 70 |
| EPKJ-24C/3XU-3XU-W | XLPE TO XLPE | 95 – 240 |
| EPKJ-24D/3XU-3XU-W | XLPE TO XLPE | 300 – 400 |
| EPKJ-24B/1XU-1HL | XLPE to paper insulated lead covered single core | 35 – 70 |
| EPKJ-24C/1XU-1HL | XLPE to paper insulated lead covered single core | 95 – 240 |
| EPKJ-24D/1XU-1HL | XLPE to paper insulated lead covered single core | 300 – 400 |
| EPKJ-24B/1HL-1HL | Paper insulated lead covered single core | 35 – 70 |
| EPKJ-24C/1HL-1HL | Paper insulated lead covered single core | 95 – 240 |
| EPKJ-24D/1HL-1HL | Paper insulated lead covered single core | 300 – 400 |
| EPKJ-24C/3XU-3SB | XLPE to paper insulated lead sheathed 3-core unarmoured | 95 – 240 |
| EPKJ-24C/3XU-3SB-W | XLPE to paper insulated lead sheathed 3-core armoured | 95 – 240 |
| EPKJ-24C/3XU-3HL | XLPE to paper insulated lead covered 3-core unarmoured | 95 – 240 |
| EPKJ-24D/3XU-3HL | XLPE to paper insulated lead covered 3-core unarmoured | 300 – 400 |
| EPKJ-24A/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 25 |
| EPKJ-24B/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 35 – 70 |
| EPKJ-24C/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 95 – 240 |
| EPKJ-24D/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 300 – 400 |
| EPKJ-24B/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 35 – 70 |
| EPKJ-24C/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 95 – 240 |
| EPKJ-24D/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 300 – 400 |
Medium Voltage Heat-shrink joints up to 36 kV – klik door om direct de producten hiervan te zien
| Type | Aderig van – naar | Maat geleider (mm2) |
|---|---|---|
| EPKJ-36A/1XU-1XU | XLPE TO XLPE | 50 – 70 |
| EPKJ-36B/1XU-1XU | XLPE TO XLPE | 95 – 150 |
| EPKJ-36C/1XU-1XU | XLPE TO XLPE | 185 – 400 |
| EPKJ-36D/1XU-1XU | XLPE TO XLPE | 500 – 630 |
| EPKJ-36A/3XU-3XU-W | XLPE TO XLPE | 50 – 70 |
| EPKJ-36B/3XU-3XU-W | XLPE TO XLPE | 95 – 150 |
| EPKJ-36C/3XU-3XU-W | XLPE TO XLPE | 185 – 400 |
| EPKJ-36A/1XU-1HL | XLPE to paper insulated lead covered single core | 50 – 70 |
| EPKJ-36B/1XU-1HL | XLPE to paper insulated lead covered single core | 95 – 150 |
| EPKJ-36C/1XU-1HL | XLPE to paper insulated lead covered single core | 185 – 400 |
| EPKJ-36D/1XU-1HL | XLPE to paper insulated lead covered single core | 500 – 630 |
| EPKJ-36B/1HL-1HL | Paper insulated lead covered single core | 95 – 150 |
| EPKJ-36C/1HL-1HL | Paper insulated lead covered single core | 185 – 400 |
| EPKJ-36D/1HL-1HL | Paper insulated lead covered single core | 500 – 630 |
| EPKJ-36C/3XU-3SB-W-GB01 | XLPE to paper insulated lead sheathed 3-core armoured | 185 -240 |
| EPKJ-36B/3SB-3SB-W | XLPE to paper insulated lead sheathed 3-core armoured | 95 – 150 |
| EPKJ-36C/3SB-3SB-W | XLPE to paper insulated lead sheathed 3-core armoured | 185 – 400 |
| EPKJ-36A/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 50 – 70 |
| EPKJ-36B/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 95 – 150 |
| EPKJ-36C/1XU-3HL | XLPE single core to paper insulated lead sheathed 3-core | 185 – 400 |
| EPKJ-36A/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 50 – 70 |
| EPKJ-36B/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 95 – 150 |
| EPKJ-36C/1XU-3SB | XLPE single core to paper insulated lead sheathed 3-core | 185 – 400 |
Wij helpen u graag bij het maken van de juiste keuze
Wilt u meer informatie over de EPKJ Raychem Kabelverbindingen voor Middenspanning productseries of heeft u hulp nodig bij het maken van de juiste keuze? Idétrading helpt u graag verder. Wij staan klaar om u te ondersteunen bij uw keuze voor duurzame en betrouwbare sluitingsoplossingen.
Vul het onderstaande contactformulier in, geef uw voorkeuren aan in het berichtveld en wij zorgen voor een passend advies.
