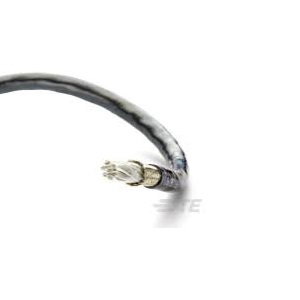

VG-95218-T020-A002 TE Connectivity Raychem cable
VG-95218-T020-A002
- Nominal cross-sectional area: 0.50 mm²
- Wire size code (VG dash no.): 02
- Stranding: 37/0.127 mm
- Conductor diameter: 0.83–0.86 mm
- Max. resistance at 20°C: 42.30 Ω/km
- Finished wire diameter: 1.270–1.320 mm
- Max. weight: 5.47 kg/km
- NATO Stock Number (NSN): 6145-12-306-2456
- MTV part number: A002
Additional information
| Product brand | TE Connectivity |
|---|---|
| Sub-brand | Raychem |
| Product description | VG-95218-T020-A012 |
| Article number manufacturer | 7322673001 |
| Packing quantity | On request |
| Temperature Range | -65 – 150°C |
| Conductor material | Tin-plated copper |
| Material | Radiation cross-linked extruded polyolefin |
| Cable type | VG-95218 |
| Rated voltage | 600V |
| Wire size (mm²) | 21 |
| VG part | Part 28 |
