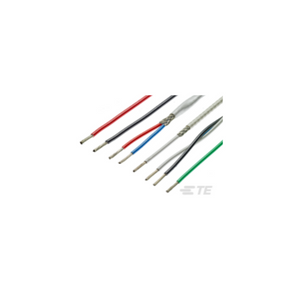

81044/12-18-8 TE Connectivity Raychem Assembly Wire
SPEC 44 assembly wire according to MIL-SPEC M81044 and VG95218.
-
Number of conductors: 1
-
AWG size: AWG 18
-
Conductor material: Tinned copper
-
Conductor color: Gray
-
Temperature range: -65…+150°C
Additional information
| Product brand | TE Connectivity |
|---|---|
| Sub-brand | Raychem |
| Series | M81044/12 |
| Product description | 81044/12-18-8 |
| Article number manufacturer | 282534-000 |
| Internal Article number | 5050-15073 |
| Mil-Spec nummer | M81044/12-18-8 |
| VG nummer | VG-95218-T1000 |
| NATO Stock Number | 6145-00-498-7298 |
| HS code / customs code | 85444995 |
| ETIM Classification code | EC003248 |
| Temperture Range | -65…+150°C |
| Cable type | MIL-DTL-81044 |
| Rated voltage | 600V |
| Number of conductors | 1 |
| Conductor material | Tin-plated copper |
| AWG formaat geleider | AWG 18 |
| Kleur geleider 1 | Grijs |
| Certification | 21, 22, 23 and 1000, AS-81044, Civil Aviation Authority Accessory Approval E11623, Def Stan. 61-12 Part 18 – Type 1 pliable (Maintenance Range), Def Stan. 61-12 Part 26 All types, NEMA-WC-27500, VG 95218 Parts 20 |
| Fire hazard performance | BS EN 50265 Vertical Flammability, Federal Aviation Reg FAR-25, IEC 60332 part 3 (Cable ladder), NFC 32070 (2) (French chimney), S424 14751 (Swedish chimney) |
| Rook- / toxiciteitsindex | BS EN 1S0-4589 Part 2, BS EN 1S0-4589 Part 3, Def Stan 61-12 (18), NES 715, Smoke Index, Temperature Index, Toxicity Index |
| Materiaal isolatie | PVDF |
| Formaat in mm2 | 0.75 |
