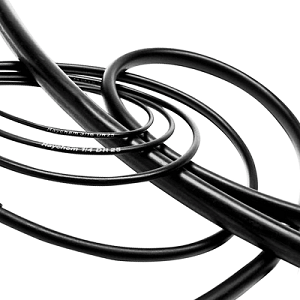

5970-12-151-4503 TE Connectivity Raychem heat shrink tubing
TE Connectivity’s Raychem DR-25 is a thick-wall elastomer heat shrink tubing specially designed for military applications.
Shrink ratio: 2:1
Inner diameter before shrinking: 12.7mm
Inner diameter after shrinking: 6.4mm
Colour: Black
Temperature range: -75…+150°C
Additional information
| Product brand | TE Connectivity |
|---|---|
| Sub-brand | Raychem |
| Product description | 5970-12-151-4503 |
| Article number manufacturer | VG 95343 T05 D005 A |
| HS code / customs code | 3926909990 |
| Country of origin | Czech Republic |
| ETIM Classification code | EC000217 |
| Series | DR-25 |
| Shrinkage type | Heatshrink |
| Model | Thick-walled |
| Shrink ratio | 2:1 |
| Innerdiameter before shrink | 12.7 |
| Innerdiameter after shrink | 6.4 |
| Nominal diameter inch | 1/2 |
| Wall thickness after shrink | 1.22mm |
| Packing unit | 60m |
| Temperature Range | -75…+150°C |
| Colour | Black |
| Transparant | No |
| Material | Elastomer (PES) |
| Halogen free | Nee |
| With inner glue | No |
| UL-approval | Yes |
