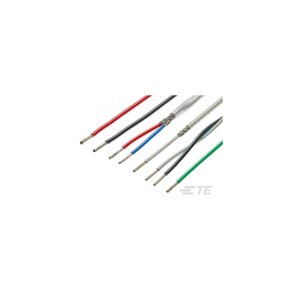

55A0116-22-6 TE Connectivity Raychem Assembly Wire
Spec 44, 55 & RCW Assembly Wire
-
Number of conductors: 1
-
AWG size: AWG 22
-
Conductor material: High-strength nickel-plated copper alloy
-
Conductor color: Blue
-
Temperature range: -65…+150°C
Additional information
| Product brand | TE Connectivity |
|---|---|
| Sub-brand | Raychem |
| Series | SPEC 55 |
| Product description | 55A0116-22-6 |
| Article number manufacturer | 478333-000 |
| VG nummer | VG-95218-T1001 |
| HS code / customs code | 85444995 |
| ETIM Classification code | EC003248 |
| Temperture Range | -65…+150°C |
| Cable type | AS22759/32-35 & 41-46 |
| Conductor material | Vernikkelde koperlegering met hoge sterkte |
| Number of conductors | 1 |
| AWG formaat geleider | 22 |
| Kleur geleider 1 | Blauw |
| Materiaal isolatie | Gemodificeerd stralingsverknoopt ETFE-polymeer |
| Fire hazard performance | BS EN 50265 Vertical Flammability, Federal Aviation Reg FAR-25, IEC 60332 part 3 (Cable ladder), NFC 32070 (2) (French chimney), S424 14751 (Swedish chimney) |
| Rook- / toxiciteitsindex | BS EN 1S0-4589 Part 2, BS EN 1S0-4589 Part 3, Def Stan 61-12 (18), NES 1243, Smoke Index, Temperature Index, Toxicity Index |
