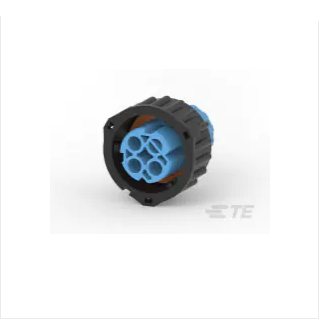

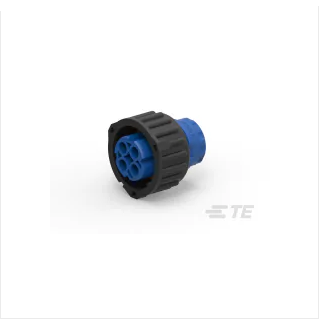

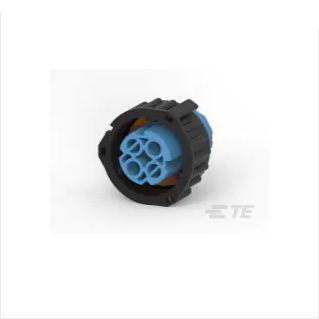

4-967325-3 TE Connectivity AMP Connector
Connector housing for 1.5 and 2.5mm connector system according to ISO 15170 ( DIN 72585).
– Number of contacts : 2
– Nominal voltage : 12,24,42,48V
– Matching pin diameter : 2,5mm
– Colour : Blue
– IP69K
Additional information
| Product brand | TE Connectivity |
|---|---|
| Sub-brand | AMP |
| Article number manufacturer | 4-967325-3 |
| HS code / customs code | 85472000 |
| Country of origin | Hungary |
| Series | AMP RK2.5 |
| Connector type | Housing for female contact pins |
| Connector system | Wire to Wire |
| Number of contacts | 2 |
| Rated voltage | 12, 24, 42, 48V |
| Housing material | PBT GF |
| Housing color | Blue |
| Matching pin diameter | 2.5mm |
| Temperture Range | -40…+120°C |
| Degree of Protection | IP69K |
| Flammability class insulation material according to UL 94 | UL 94HB |
