Seal, protect, and provide strain relief with heat-shrink molded parts available in a range of shapes and materials designed to withstand the most demanding environments.

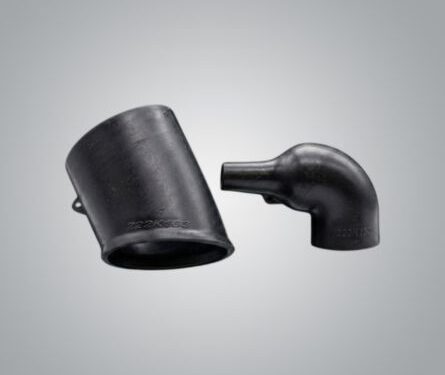

222A032-4-0 – Heat-shrink right-angle boot – TE Connectivity
Description
The heat-shrink molded parts from Raychem meet a wide range of demanding environmental conditions. These mechanically robust molded components are easy to install and available in various sizes and shapes. TE Connectivity leverages its expertise in suitable material technologies for these applications.
The molded parts comply with the following requirements:
• Low and high temperature environments
• Fluid resistance
• Flame resistance
• Mechanical abuse resistance
• Environmental sealing
• Strain relief
• Transitions
Additional information
| Product brand | TE Connectivity’s Raychem |
|---|---|
| Product description | 222A032-4-0 |
| Article number manufacturer | 809153-000 |
| Shape cast part | 90° |
| Lipped | No |
| Materiaal code | 4 |
| Materiaal systeem code | 10 |
| Met lijmlaag | No |
| Material | Flexible modified polyolefin |
| Innerdiameter before shrink | 19.3 |
| Temperture Range | -55 – 135 °C |
| Certification | SAE AS81765/1 Type II |
| Code materiaal vorm | 222 |
| Vloeistof- / chemische weerstand | Incidental exposure to liquids |
| Adhesive options | 42 Precoat |
| Cable diameter | 14.2 – 19.3mm |
