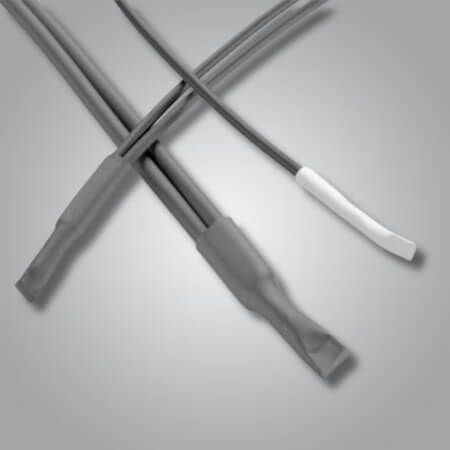

RAYCHEM TC-Cap shrinkable flame-retardant polyolefin end caps
Shrinkable end caps from TE Connectivity RAYCHEM widely used for wire terminations due to their light weight, small size, and durability. Vibration-resistant end caps used to insulate and seal terminating electrical cables, fixtures, connectors, and other electrical equipment. Also used to protect wire ends during storage.
Installation
- Minimum shrink temperature: 110°C [230°F]
- Minimum full recovery temperature: 135°C [275°F]
- Operating temperature range: -55°C to 135°C [-67°F to 275°F]
Features of TC-Cap end caps
Product Overview RAYCHEM TC-Cap End Caps
Click through to see the products directly.
Article Number |
Color |
Length |
Diameter Before Shrinking |
Diameter After Shrinking |
Wall Thickness |
|---|---|---|---|---|---|
| TC 4001 | White | 19.1mm | 1.6mm | 0.8mm | 0.51 ± 0.12mm |
| TC 4003 | Red | 25.4mm | 3.2mm | 1.3mm | 0.64 ± 0.12mm |
| TC 4005 | Gray | 28.6mm | 6.4mm | 2.5mm | 0.69 ± 0.12mm |
We are happy to help you make the right choice
Do you want more information about the RAYCHEM TC-Cap product series or need help making the right choice? Idétrading is happy to assist you. We are ready to support you in choosing sustainable and reliable sealing solutions.
Please fill in the contact form below, indicate your preferences in the message field, and we will provide you with appropriate advice.
