Raychem DR-25 Shrink Tubing: Heat-Resistant and Chemically Resistant for Various Applications

The DR-25 shrink tubing from Raychem is a robust, heat-resistant solution widely used across various industries. Known for its exceptional performance and durability, even in demanding environments, this chemically resistant shrink tubing provides reliable protection and excellent functionality for diverse applications.

Why Choose the DR-25 Shrink Tubing?

The DR-25 shrink tubing is crafted from high-quality, cross-linked polyolefin material. This ensures high tensile strength and outstanding resistance to impact and abrasion, making it ideal for environments involving mechanical stress and harsh conditions. Additionally, this shrink tubing resists a wide range of chemicals, fuels, lubricants, acids, and solvents, making it perfect for use in aggressive environments.

Another key feature of the DR-25 shrink tubing is its flexibility, even at low temperatures, preventing cracking and facilitating easy installation. This makes it an excellent choice for cold environments where other materials may fail to perform effectively.

Compliant with the AMS-DTL-23053/16 standard, the DR-25 shrink tubing is an optimal solution for electrical insulation in cables and wire harnesses for military vehicles. It is also highly suited for meeting the rigorous demands of motorsport wiring harnesses. When paired with System 25 heat-shrinkable molded shapes and S1125 high-performance adhesive, it delivers a complete and reliable wire harness system.

In summary, Raychem’s DR-25 shrink tubing is a versatile, chemically resistant, and heat-resistant solution perfect for applications where reliability and durability are paramount.

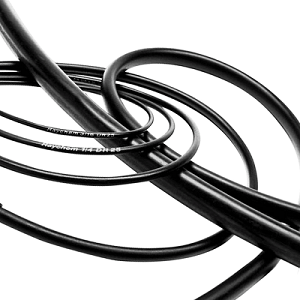

DR-25 militaire krimpkous TE Connectivity Raychem

Features of SCL Adhesive-Lined Shrink Tubing

Uniquely formulated material for optimal high-temperature fluid resistance and long-term heat durability
Ideaal voor militaire toepassingen
Ideal for military applications
AMS-DTL-23053/16
2:1 shrink ratio.
RoHS Compliant

datasheet

Request information

Product Dimensions of DR-25 Heat Shrink Tubing

Chemically Resistant Heat Shrink Tubing with 2:1 Ratio – Click through to view the products directly

Part Number	VG Number	Mil-Spec	Diameter Before Shrink	Diameter After Shrink	Wall Thickness
DR-25-1/8-0-SP	VG95343T05D001A	–	3.2mm	1.6mm	0.76mm
DR-25-3/16-0-SP	VG95343T05D002A	–	4.8mm	2.4mm	0.84mm
DR-25-1/4-0-SP	VG95343T05D003A	M23053/16-001	6.4mm	3.2mm	0.89mm
DR-25-3/8-0-SP	VG95343T05D004A	M23053/16-002	9.5mm	4.8mm	1.02mm
DR-25-1/2-0-SP	VG95343T05D005A	M23053/16-003	12.7mm	6.4mm	1.22mm
DR-25-3/4-0-SP	VG95343T05D006A	M23053/16-004	19.0mm	9.5mm	1.45mm
DR-25-1-0-SP	VG95343T05D007A	M23053/16-005	25.4mm	12.7mm	1.78mm
DR-25-1-1/2-0-SP	VG95343T05D008A	M23053/16-006	38.0mm	19.1mm	2.41mm
DR-25-2-0-SP	VG95343T05D009A	M23053/16-007	51.0mm	25.4mm	2.79mm
DR-25-3-0-SP	VG95343T05D010A	M23053/16-008	76.0mm	38.0mm	3.18mm
DR-25-4-0-SP	VG95343T05D011A	M23053/16-009	101.6mm	50.8mm	3.55mm

Order information Raychem DR-25 heat shrink tubing

Standard Color: Black (-0)

Size Selection: Always order the largest size that will shrink snugly around the component to be covered.

Packaging: Reels and small packages

Ordering Instructions: Specify product name, size, and color (e.g., DR-25 1/8-0).

AMS-DTL-23053/16

AMS-DTL-23053/16 is a specification used for heat shrink tubing in the electrical and electronic industries. It is part of the AMS-DTL-23053 series, which defines the military specifications for insulating sleeves for electrical applications.

The AMS-DTL-23053/16 specification sets out the requirements for heat shrink tubing with thermal shrinkage properties. AMS-DTL-23053/16 specifies the properties of the heat shrink tubing, including the chemical composition of the material, shrink ratio, thermal stability, electrical insulation performance, and mechanical properties. This specification ensures that the heat shrink tubing meets the required standards and is suitable for use in demanding military environments.

The “/16” in AMS-DTL-23053/16 refers to a specific type of heat shrink tubing with certain characteristics and properties. It indicates that it is a thin-walled tubing with a high shrink ratio and excellent properties in insulation, mechanical protection, and resistance to chemicals and liquids.

AMS-DTL-23053/16 has been developed to meet the stringent requirements of military applications. It is widely used in aerospace, defense, maritime, and other industries where reliability, durability, and resistance to extreme environmental factors are crucial.

Certification:

AMS-DTL 23053/16
VG95343 Part 5 Type D
VDE 0341/Pt 9005
Def Stan 59-97 Issue 3 Type 6B
BS 4G-198 Part 3 10A

AMS-DTL-23053/16 is a specification used for heat shrink tubing in the electrical and electronic industries. It is part of the AMS-DTL-23053 series, which defines the military specifications for insulating sleeves for electrical applications.

The AMS-DTL-23053/16 specification sets out the requirements for heat shrink tubing with thermal shrinkage properties. AMS-DTL-23053/16 specifies the properties of the heat shrink tubing, including the chemical composition of the material, shrink ratio, thermal stability, electrical insulation performance, and mechanical properties. This specification ensures that the heat shrink tubing meets the required standards and is suitable for use in demanding military environments.

The “/16” in AMS-DTL-23053/16 refers to a specific type of heat shrink tubing with certain characteristics and properties. It indicates that it is a thin-walled tubing with a high shrink ratio and excellent properties in insulation, mechanical protection, and resistance to chemicals and liquids.

AMS-DTL-23053/16 has been developed to meet the stringent requirements of military applications. It is widely used in aerospace, defense, maritime, and other industries where reliability, durability, and resistance to extreme environmental factors are crucial.
