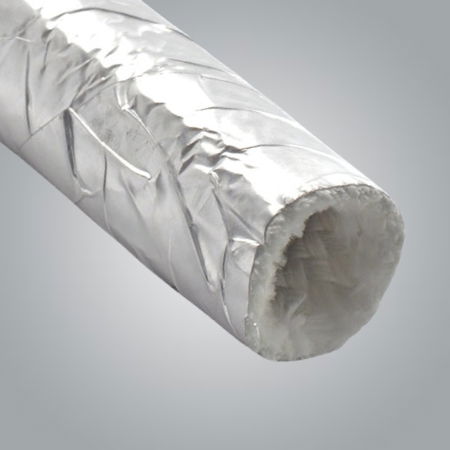

ReflectSleeve 1501 Federal Mogul Protective Sleeve
ReflectSleeve 1501 Federal Mogul Protective Sleeve is a reinforced, aluminized polyester protective sleeve designed to protect components in high-temperature environments. The outer surface consists of a highly reflective aluminum foil, which provides protection against radiant heat for internal components.
The inner layer is made from a polyester non-woven material, offering additional insulation efficiency. A layer of fiberglass fabric contributes to both product flexibility and durability. ReflectSleeve 1501 is engineered with a combination of materials to provide a technical solution for cable harnesses and other components in close proximity to engine and exhaust systems.
ReflectSleeve 1501 offers a cost-effective, non-irritating alternative to existing radiant heat products.
Features ReflectSleeve 1501
Product Overview ReflectSleeve 1501
En klik door om de producten hiervan te zien.
| Type Number | Nominal Diameter | Outer Protective Layer | Inner Protective Layer |
|---|---|---|---|
| ReflectSleeve 1501 10 | 10mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 13 | 13mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 16 | 16mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 19 | 19mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 22 | 22mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 25 | 25mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 32 | 32mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 35 | 35mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 38 | 38mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 45 | 45mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 51 | 51mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 70 | 70mm | Aluminum | Non-woven polyester (PET) |
Certifications/Approvals 1501 ReflectSleeve
| Type Number | Nominal Diameter | Outer Protective Layer | Inner Protective Layer |
|---|---|---|---|
| ReflectSleeve 1501 10 | 10mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 13 | 13mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 16 | 16mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 19 | 19mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 22 | 22mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 25 | 25mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 32 | 32mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 35 | 35mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 38 | 38mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 45 | 45mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 51 | 51mm | Aluminum | Non-woven polyester (PET) |
| ReflectSleeve 1501 70 | 70mm | Aluminum | Non-woven polyester (PET) |
