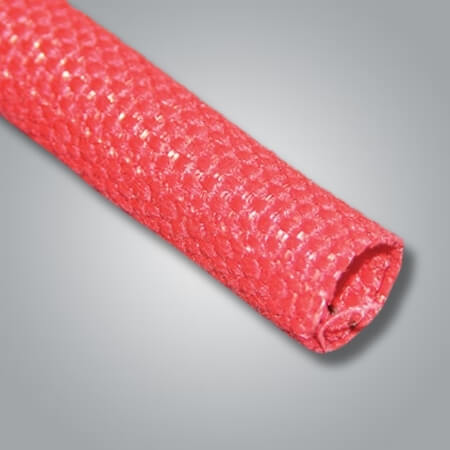

Roundit 2000 NX RED: The Perfect Solution for Cable Identification

The Roundit 2000 NX RED from Federal Mogul is an advanced self-wrapping sleeve made from high-quality PPS monofilaments and Nomex®. This sleeve features an oil- and water-repellent treatment, providing excellent mechanical protection for wire and cable bundles. With a 100% coverage ratio, the Roundit 2000 NX RED offers superior cut-through and abrasion resistance, which is essential for reliable operation in demanding environments. Its innovative design guarantees a durable solution for maintaining the integrity of your cable systems.

Applications in the Military and Aerospace Industries

The ROUNDIT 2000 NX RED is specifically designed for identifying cable harnesses connected to weapon systems. Thanks to the self-wrapping feature, the installation and removal of the sleeve are quick and easy, significantly facilitating the maintenance and inspection of cables. This sleeve not only provides protection for breakout areas but also ensures efficient access to cables when inspection or maintenance is necessary. With its versatile applications in the aerospace and military sectors, the Roundit 2000 NX RED is the ideal choice for professionals demanding reliability and functionality.

Roundit 2000 NX RED Federal Mogul Beschermkous

Our brand:

  • Federal Mogul – Systems Protection

Features Roundit 2000 NX RED

  • -60…+200°C

  • RoHS Complaint

  • ASD EN 6049-006
  • Halogen free
  • Oil and water repellent

  • Lightweight construction
  • Easy to apply and to remove

Product Overview Roundit 2000 NX RED

Click on product number to view product information.

Type Number Bundle Diameter Operating Temperature Packaging Material
ROUNDIT 2000 NX 5-2 1-5mm -60…+200°C 150m Nomex®
ROUNDIT 2000 NX 8-2 5-8mm -60…+200°C 100m Nomex®
ROUNDIT 2000 NX 13-2 8-13mm -60…+200°C 50m Nomex®
ROUNDIT 2000 NX 19-2 16-19mm -60…+200°C 25m Nomex®
ROUNDIT 2000 NX 25-2 19-25mm -60…+200°C 25m Nomex®
ROUNDIT 2000 NX 32-2 25-32mm -60…+200°C 25m Nomex®
ROUNDIT 2000 NX 40-2 32-40mm -60…+200°C 25m Nomex®

Certifications/Approvals Roundit 2000 NX red

Options Test Result
Operating Temperature -60…+200°C
Flammability F.A.R. Part 25 (60s)
F.A.R. Part 25 (25s)
Passed
Passed
Smoke Density ASTM E-662 (flaming)
prEN 2825B (non-flaming)
Passed
Passed
Toxicity BSS7239 + prEN 2826B Passed
Water Resistance EN 6059 Part 305 Passed
Abrasion Resistance EN 6059 Part 403 Passed
Dynamic Cut Resistance EN 6059 Part 405 Passed
Vibration DO 160B No damage to cables
Fluid Resistance:
Fuel JP5 Jet A, ASTM D1655
Hydraulic fluid Skydrol
MIL-PRF-5606
MIL-PRF-87257
Methyl Propyl Ketone BMS11-9, Grade 1
Isopropyl Alcohol TT-I-735
Synthetic lubricant MIL-PRF-23699
Mineral lubricant MIL-L-7870A
De-icing fluid MIL-A-8243D
Cleaning products MIL-C-87937, Type 1,
Alkaline Detergent (pH 10.0-10.5)
EN 6059 Part 303
BMS 13-81 § 8.2
EN 6059 Part 303 + BMS 13-81 § 8.2
Good resistance
