Roundit 2000 NX – PTR: Discover the Advantages of This Series

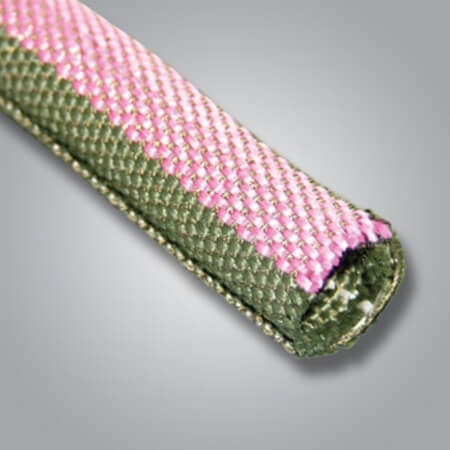

The Roundit 2000 NX – PTR from Federal Mogul is an innovative, self-wrapping sleeve made from high-quality PPS monofilaments and Nomex® multifilaments. Thanks to its oil- and water-repellent treatment, this sleeve offers not only excellent mechanical protection but also optimal abrasion and maintenance resistance for wire and cable bundles. Its unique design provides 100% coverage, which is essential for ensuring the safety and functionality of your cable systems. The self-wrapping feature enables easy and efficient installation and removal, making it the ideal choice for both assembly and maintenance.
Applications in Aerospace and the Military Industry
The ROUNDIT 2000 NX, with its distinctive pink tracer, is specifically designed for easy identification of fuel lines, minimizing confusion and potential errors during installation or maintenance. This sleeve has numerous applications in the aerospace and military industries, where reliability and durability are crucial. Thanks to the combination of high-quality materials and thoughtful design, the Roundit 2000 NX – PTR is the perfect solution for professionals seeking dependable and efficient closure solutions for their cable and hose systems.
Our brand:
Features Roundit 2000 NX PTR
<h2 style=”text-align: center;”>Product Overview Roundit 2000 NX PTR</h2>
Click through to view the available products.
| Part Number | Bundle Diameter | Operating Temperature | Packaging | Material |
|---|---|---|---|---|
| ROUNDIT 2000 NX Ptr 5-5/29 | 1–5mm | -60…+200°C | 150m | Nomex® |
| ROUNDIT 2000 NX Ptr 8-5/29 | 5–8mm | -60…+200°C | 100m | Nomex® |
| ROUNDIT 2000 NX Ptr 13-5/29 | 8–13mm | -60…+200°C | 50m | Nomex® |
| ROUNDIT 2000 NX Ptr 19-5/29 | 13–19mm | -60…+200°C | 25m | Nomex® |
| ROUNDIT 2000 NX Ptr 25-5/29 | 19–25mm | -60…+200°C | 25m | Nomex® |
| ROUNDIT 2000 NX Ptr 32-5/29 | 25–32mm | -60…+200°C | 25m | Nomex® |
| ROUNDIT 2000 NX Ptr 40-5/29 | 32–40mm | -60…+200°C | 25m | Nomex® |
Certifications / Approvals Roundit 2000 NX PTR
| Options | Test | Result |
|---|---|---|
| Operating temperature | -60…+200°C | |
| Heat stabilization | DMS 2379 § 4.5.9 | Passed |
| Abrasion resistance | EN 6059 Part 403 | Passed |
| Dynamic cut-through | EN 6059 Part 405 | Passed |
| Vibrations | DO 160B | No cable wear |
| Flammability | DMS 1511 FAR Part 25 |
Passed Passed |
| Smoke density | ASTM F814 ASTM E662 |
Passed Dmax <50 |
| Vacuum stability | ASTM E595 | Meets industry requirements: TML 1.89% CVCM 0.18% WVR 1.60 |
| Toxicity | BSS 7239 | Passed |
| Fluid resistance Aircraft fuel JP-4 (MIL-T-5024) Hydraulic fluid (Rayco 782, MIL-H-83282) Hydraulic fluid (Skydrol LD4, DMS 2014, T4 Class 1) Isopropyl alcohol (TT-I-735) |
DMS 2379 § 4.5.7 | All passed |
We are happy to help you make the right choice
Do you have questions about the Roundit 2000 NX PTR product series or would you like advice on the right solution for your applications? Idétrading is happy to assist you. We are ready to support you in choosing durable and reliable closure solutions.
Please fill out the contact form below, indicate your preferences in the message field, and we will provide you with tailored advice.
