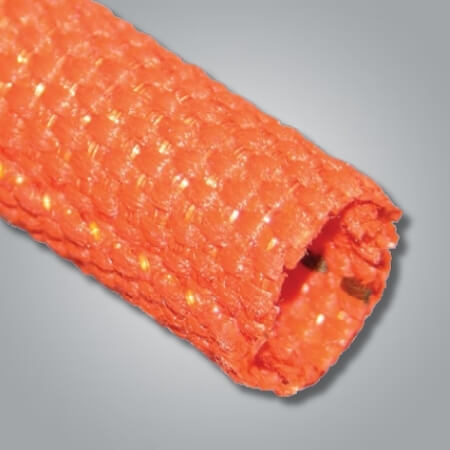

Roundit 2000 NX Orange Federal Mogul: Effective Protection and Identification for Cable Harnesses
The Roundit 2000 NX Orange Federal Mogul protective sleeve is an advanced self-wrapping sleeve made from PPS monofilaments and Nomex®. With an oil and water-repellent treatment, this sleeve offers optimal mechanical protection and maintenance for wire and cable bundles. The 100% coverage ratio ensures excellent cut-through and abrasion resistance, making it the ideal choice for demanding applications. The bright orange color is specifically designed for the identification of cable harnesses connected to test equipment onboard aircraft, improving efficiency and safety during inspections and maintenance.
Easy Installation and Maintenance with the Self-Wrapping Feature
One of the greatest advantages of the Roundit 2000 NX Orange is its user-friendly self-wrapping feature. This design allows for quick and easy installation and removal of the protective sleeve, which is crucial for assembly and maintenance in the aviation sector. Thanks to this functionality, technicians can quickly access the cables and wire bundles, saving time and effort during repairs and inspections. Choose the Roundit 2000 NX Orange for durable, reliable, and efficient protection of your cable systems.
Product Overview Federal Mogul Roundit 2000 NX Orange
Click on product number to view product information
Type Number | Bundle Diameter | Operating Temperature | Packaging | Material |
---|---|---|---|---|
ROUNDIT 2000 NX 5-3 | 1-5mm | -60…+200°C | 150m | Nomex® |
ROUNDIT 2000 NX 8-3 | 5-8mm | -60…+200°C | 100m | Nomex® |
ROUNDIT 2000 NX 13-3 | 8-13mm | -60…+200°C | 50m | Nomex® |
ROUNDIT 2000 NX 19-3 | 16-19mm | -60…+200°C | 25m | Nomex® |
ROUNDIT 2000 NX 25-3 | 19-25mm | -60…+200°C | 25m | Nomex® |
ROUNDIT 2000 NX 32-3 | 25-32mm | -60…+200°C | 25m | Nomex® |
ROUNDIT 2000 NX 40-3 | 32-40mm | -60…+200°C | 25m | Nomex® |
Certifications/Approvals Roundit 2000 NX Orange
Options | Test | Result |
---|---|---|
Operating Temperature | -60…+200°C | |
Flammability | F.A.R. Part 25 (60s) F.A.R. Part 25 (25s) |
Passed Passed |
Smoke Density | ASTM E-662 (flaming) prEN 2825B (non-flaming) |
Passed Passed |
Toxicity | BSS7239 + prEN 2826B | Passed |
Water Resistance | EN 6059 Part 305 | Passed |
Abrasion Resistance | EN 6059 Part 403 | Passed |
Dynamic Cut Resistance | EN 6059 Part 405 | Passed |
Vibrations | DO 160B | No damage to cable |
Fluid Resistance: Fuel JP5 Jet A, ASTM D1655 Hydraulic fluid Skydrol MIL-PRF-5606 MIL-PRF-87257 Methyl Propyl Ketone BMS11-9, Grade 1 Isopropyl Alcohol TT-I-735 Synthetic lubricant MIL-PRF-23699 Mineral lubricant MIL-L-7870A De-icing fluid MIL-A-8243D Cleaning products MIL-C-87937, Type 1, Alkaline Detergent (pH 10.0-10.5) |
EN 6059 Part 303 BMS 13-81 § 8.2 EN 6059 Part 303 + BMS 13-81 § 8.2 EN 6059 Part 303 + BMS 13-81 § 8.2 Good resistance |
Good resistance |
