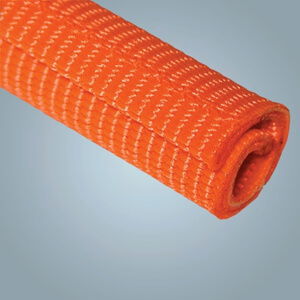

CrushShield 2442: Superior Protection for HEV Cables

CrushShield 2442 is designed to protect electrical cables, including HEV cables, with its advanced, self-wrapping construction. This robust protective sleeving provides excellent cut-through resistance, which is crucial for securing cables in vehicles, especially in crash situations.

The multi-layer design of CrushShield® 2442 absorbs and disperses energy to prevent damage to internal cables, ensuring that vehicles meet the highest industry standards. With an operating temperature of up to 150°C and a lightweight, flexible structure, CrushShield® 2442 offers reliable protection without adding extra weight or hindering cable routing.

Reliable Identification and Efficient Installation with CrushShield® 2442

CrushShield® 2442 is available in vibrant colors, including orange and black, for clear identification of high-voltage cables in hybrid electric vehicles and other applications. The color coding aids in the quick and accurate identification of cables, enhancing safety and efficiency during assembly and maintenance. This RoHS-compliant protective sleeving not only offers excellent cut-through resistance but is also easy to install.

Thanks to its flexible and lightweight design, CrushShield® 2442 is an ideal choice for manufacturers needing high-quality cable protection, specifically for HEV applications and other critical situations.

Features of CrushShield 2442:

  • Operating temperature up to +150°C (+302°F)
  • RoHS Compliant
  • Excellent cut-through resistance
  • Color-coded for high-voltage identification
  • Flexible and lightweight
  • Easy to install

Algemene Toepassingen:

  • High-Voltage Cable
  • Gas Pipes
  • Pipes and Tubes

Product Overview Crushshield 2442

Click through to view the products.

Type Number Bundle Diameter Nominal Diameter Operating Temperature
CrushShield 2442 7 5-7mm 7mm -50…+150°C
CrushShield 2442 10 8-10mm 10mm -50…+150°C
CrushShield 2442 13 11-13mm 13mm -50…+150°C
CrushShield 2442 16 14-16mm 16mm -50…+150°C
CrushShield 2442 19 17-19mm 19mm -50…+150°C
CrushShield 2442 25 20-25mm 25mm -50…+150°C

Certifications/Inspections CrushShield 2442

Certifications/Inspections CrushShield 2442

Options Test Method Result
Operating Temperature 240 hours at 175°C +150°C
Flammability SAE 1369 self-extinguishing
Low Temperature Flexibility BH100-016A -70°C
Chipping Resistance SAE J400 Passed
Dynamic Cut-through Resistance ASTM D3032-10 Section 22 (modified) 650 N avg.
Fluid Resistance BH100-003B Passed
