Roundit 2000-FR Braided Protective Sleeve

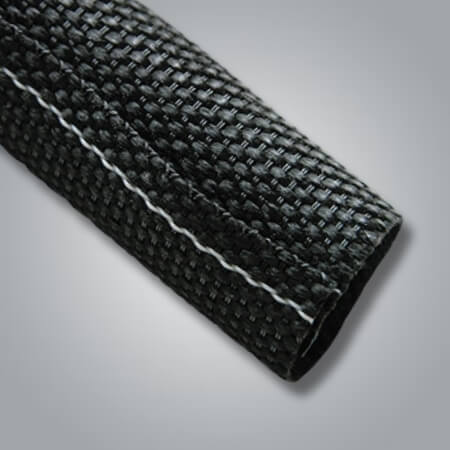

ROUNDIT® 2000 is a woven blend of polyester monofilaments and multifilaments. The monofilament/multifilament mix in a flat woven construction gives ROUNDIT 2000 a robust yet smooth texture and appearance. This product is rated up to +125 °C.
Roundit has many applications in aerospace, marine, electronics, furniture accessories, and general manufacturing industries.
ROUNDIT products are sturdy, lightweight oversleeves used to bundle and protect cable assemblies, hoses, and wire harnesses from abrasion, cutting, and wear. The self-wrapping feature of ROUNDIT products allows for quick and easy application and removal of the product for assembly and maintenance.
Product Overview Roundit 2000-FR
Click on produtnumber to go to productpage
| Type Number | Nominal Size: | Operating Temperature | Packaging | Material |
|---|---|---|---|---|
| Roundit 2000 FR 5-0/9 | 5mm | -50…+125°C | 150m | Polyester |
| Roundit 2000 FR 8-0/9 | 8mm | -50…+125°C | 100m | Polyester |
| Roundit 2000 FR 13-0/9 | 13mm | -50…+125°C | 50m | Polyester |
| Roundit 2000 FR 19-0/9 | 19mm | -50…+125°C | 25m | Polyester |
| Roundit 2000 FR 25-0/9 | 25mm | -50…+125°C | 25m | Polyester |
| Roundit 2000 FR 29-0/9 | 29mm | -50…+125°C | 25m | Polyester |
| Roundit 2000 FR 32-0/9 | 32mm | -50…+125°C | 25m | Polyester |
| Roundit 2000 FR 38-0/9 | 38mm | -50…+125°C | 25m | Polyester |
| Roundit 2000 FR 50-0/9 | 50mm | -50…+125°C | 25m | Polyester |
Certifications/Inspections Roundit 2000-FR Braided Sleeve
| Options | Test | Result |
|---|---|---|
| Operating Temperature | -50…125°C | |
| Glow Wire Ignition Temperature | +250°C | |
| Fire / Smoke / Toxicity | NF 16 101- 16 102 DIN 5510 §2 & 54837 UNI CEI 1170-3 Ed 2005 BS ASTM E 662 – ASTM E 162 |
I3 F2 S4, SR2, ST2 T = Passed |
| Fluid Resistance – Hydraulic Resistance: NATO 0.156 |
EN 6059-303 Immersion 24h at 70°C |
No visible degradation |
