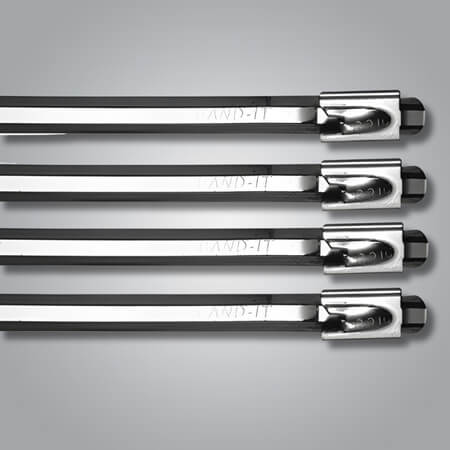

Ball-Lok Cable Ties with Partial Coating
Ball-Lok cable ties with partial coating from Band-It, made of 316 stainless steel, offer the same benefits as the fully coated version but are specifically designed for applications that require a Nylon 11 coating. These cable ties combine the strength and durability of stainless steel with the protective properties of a selective coating, making them highly suitable for use in demanding environments.
Thanks to the selective Nylon 11 coating, the Ball-Lok ties are protected against corrosion and abrasion, while the rest of the tie retains the inherent strength and temperature resistance of stainless steel. This combination makes them ideal for applications in aerospace, marine, and other industrial sectors where reliability and durability are essential.
The Ball-Lok ties are easy to install thanks to their unique ball-locking mechanism, which ensures a secure and tight connection without the risk of loosening. Additionally, they are resistant to extreme temperatures and various chemical influences, further enhancing their versatility and usability in diverse environments.
Features of the Band-It cable ties with nylon coating:
Ball-Lok stainless steel 316 cable ties partially coated
Click through to view the product information.
Item Number |
Width |
Length |
Bundle Diameter |
Tensile Strength |
Packaging |
|---|---|---|---|---|---|
| BT222L6 | 4.6 mm | 201 mm | 51 mm | 445 N | 100 pieces |
| BT222L9 | 4.6 mm | 228 mm | 58 mm | 445 N | 100 pieces |
| BT222L10 | 4.6 mm | 254 mm | 64 mm | 445 N | 100 pieces |
| BT222L12 | 4.6 mm | 305 mm | 76 mm | 445 N | 100 pieces |
| BT222L14 | 4.6 mm | 356 mm | 89 mm | 445 N | 100 pieces |
View the Ball-Lok application tool series
Click through to view the product information.

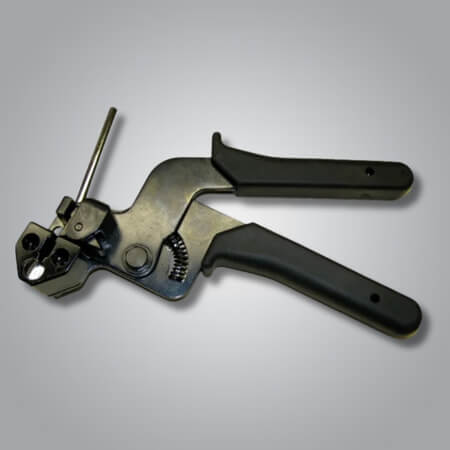

- Tensioning tool for Ball-Lok cable ties – 4.6mm to 12.0mm
Definitions of Band-It stainless steel types
Type 316 Stainless Steel (EN 1.4401)
Type 316 is an austenitic chromium-nickel stainless and heat-resistant steel with superior corrosion resistance. It is widely used in marine atmospheres and environments where it is exposed to various chemicals, salts, acids, and high temperatures. Type 316 offers superior creep strength at elevated temperatures.
Type 316 Stainless Steel (EN 1.4401)
Type 316 is an austenitic chromium-nickel stainless and heat-resistant steel with superior corrosion resistance. It is widely used in marine atmospheres and environments where it is exposed to various chemicals, salts, acids, and high temperatures. Type 316 offers superior creep strength at elevated temperatures.
Band-it certifications:
Applications for Band-It stainless steel fastening materials
The applicability of fastening materials spans nearly every market:
Automotive
Construction & Infrastructure
Defense & Militairy mobility
Electrical & Installation Technology
Energy & Utility
Industrial machines
Aerospace
Oil & Gas
Maritime & Offshore
Railway
Truck, Bus & Offroad vehicles
Cabinet construction
We’re here to help you make the right choice
Would you like more information about the Ball-Lok cable ties with partial coating product series or do you need assistance in making the right choice? Idétrading is happy to help. We are ready to support you in selecting durable and reliable fastening solutions.
Please fill out the contact form below, indicate your preferences in the message field, and we will provide you with tailored advice.
"*" indicates required fields
