Brack-It Mounting Brackets by Band-It

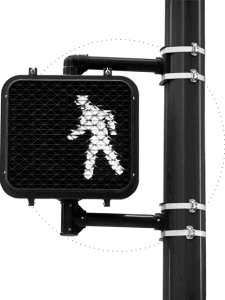

Brack-It mounting brackets by Band-It are used to mount traffic signs, security equipment, and enclosures. Resistant to stress and wind vibrations with specially designed reinforcing ribs.
Features of Band-It Brackets
- Available in 201 stainless steel
- Convenient fastening methods
- Hex bolts with metal and fiber washer, no nuts needed
- Quantity per package: 50 pieces

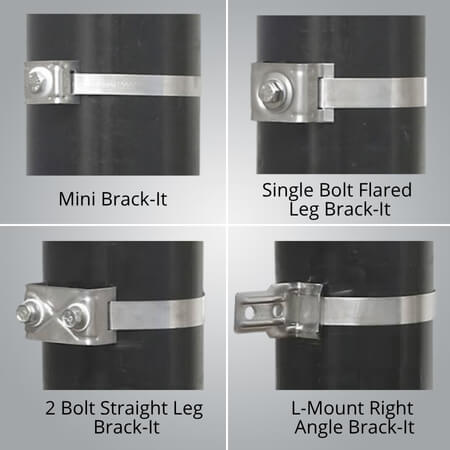

Overview of Band-It Brack-It Products
Click through to view the products or product series
- Loose stainless steel bolts (M8 x 20)
- Weight: 0.57 kg
- Band width: n/a
- Bolts and washers for Brack-It
- For use with D001 to D022

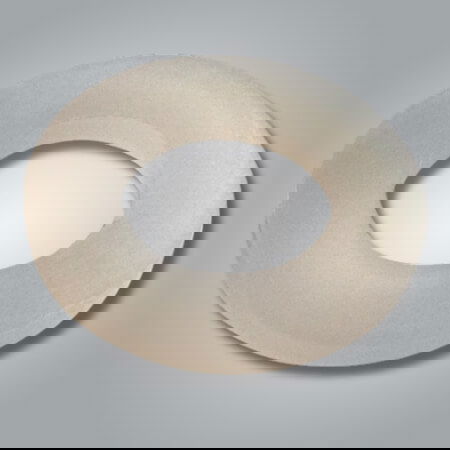

- Fiber washers
- Weight: 0.03 kg
- Band width: n/a
- Bolts and washers for Brack-It
- For use with D001, D008, D310, D315
- Stainless steel bracket without bolt or washer
- Weight: 2.7 kg
- Band width: Up to ¾” (19.05 mm)
- 1 Bolt Straight Leg Brack-It
- Stainless steel bracket with stainless steel bolt, metal and fiber washer
- Weight: 4.4 kg
- Band width: Up to ¾” (19.05 mm)
- Bolt Brack-It
- Stainless steel bracket without bolt or washer
- Weight: 3.2 kg
- Band width: Up to ¾” (19.05 mm)
- Bolt Brack-It
- Stainless steel bracket with stainless steel bolt and metal washer (no fiber washer)
- Weight: 3.5 kg
- Band width: Up to ¾” (19.05 mm)
- Bolt Flared Leg Brack-It
- Stainless steel bracket without bolt or washer
- Weight: 2.7 kg
- Band width: Up to ¾” (19.05 mm)
- Bolt Flared Leg Brack-It

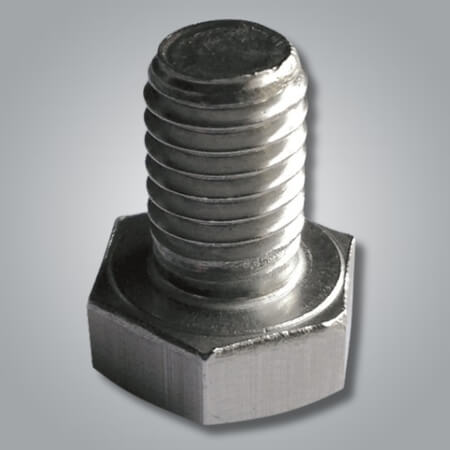

- Spare bolt (M8 x 12 hex head)
- Weight: 0.34 kg
- Band width: N/A
- Loose bolt for Brack-Its
- Flared Leg with stainless steel bolt and fiber washer
- Weight: 1.5 kg
- Band width: Up to ½” (12.7 mm)
- 1-bolt Flared Leg
- Straight Leg with stainless steel bolt and fiber washer
- Weight: 1.5 kg
- Band width: Up to ½” (12.7 mm)
- 1-bolt Straight Leg
Special Brack-It types
Click through to view the products or product series
- Length: 42 mm (1.6″)
- Hole diameter: 5 mm (0.2″)
- Hole distance: 38 mm (1.5″)
- Suitable for band width: 12.7 mm (0.5″)
- Type: Y Brack-It
- Length: 42 mm (1.6″)
- Hole diameter: 5 mm (0.2″)
- Hole distance: 38 mm (1.5″)
- Suitable for band width: 12.7 mm (0.5″)
- Type: Y Brack-It
- Length: 51 mm (2.0″)
- Hole diameter: 7.9 mm (0.311″)
- Hole distance: 19 mm (0.75″)
- Suitable for band width: 19.05 mm (0.75″)
- Type: Valmount Brack-It
- Length: 102 mm (4.0″)
- Hole diameter: 7.9 mm (0.311″)
- Hole distance: 37.5 mm (1.48″)
- Suitable for band width: 19.05 mm (0.75″)
- Type: Valmount Brack-It
- Length: 91 mm (3.6″)
- Hole diameter: 9 mm (0.375″)
- Hole distance: 38 mm (1.5″)
- Suitable for band width: 19.05 mm (0.75″)
- Type: Super Valmount
- Length: 200 mm (7.9″)
- Hole diameter: 9 mm (0.375″)
- Hole distance: 38 mm (1.5″)
- Suitable for band width: 19.05 mm (0.75″)
- Type: Nameplate Brack-It
Product overview Brack-It stainless steel mounting brackets
And click through to view the products
Article Number |
Type |
Packaging |
|---|---|---|
| D001 | Mounting bracket with 1 bolt | 50 pieces |

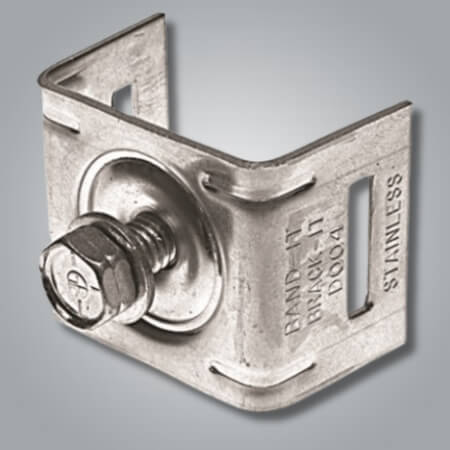

| D004 | Mounting bracket with 1 bolt | 50 pieces |

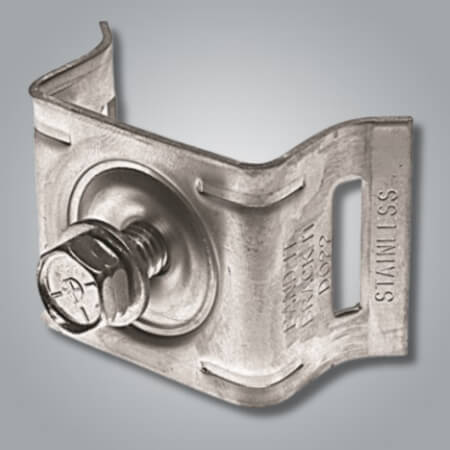

| D021 | Mounting bracket with 1 bolt | 50 pieces |

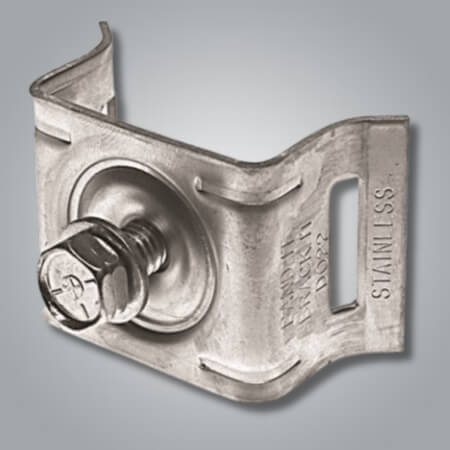

| D022 | Mounting bracket with 1 bolt | 50 pieces |

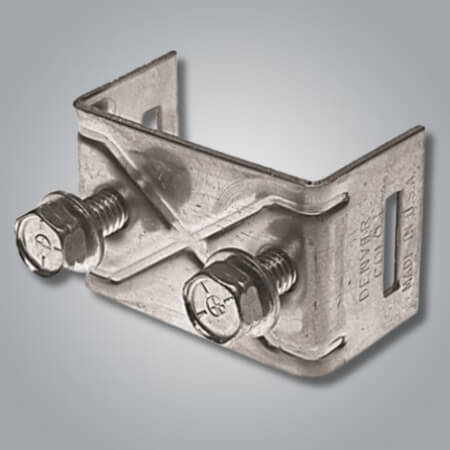

| D008 | Mounting bracket with 2 bolts | 50 pieces |

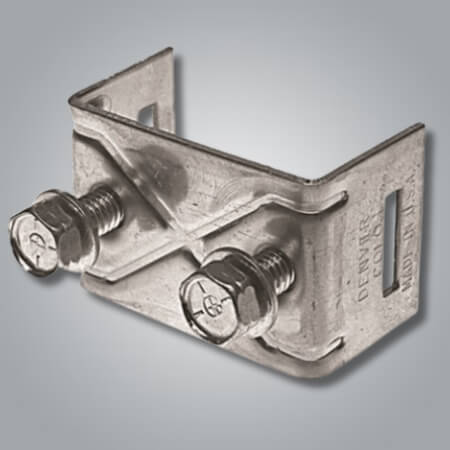

| D009 | Mounting bracket with 2 bolts | 50 pieces |

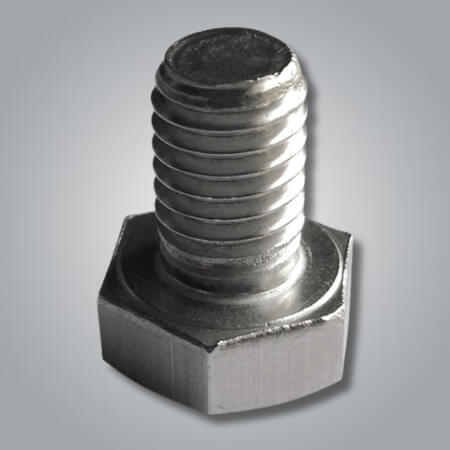

| D002 | M8 bolt | 50 pieces |
| D003 | Mounting ring | 50 pieces |

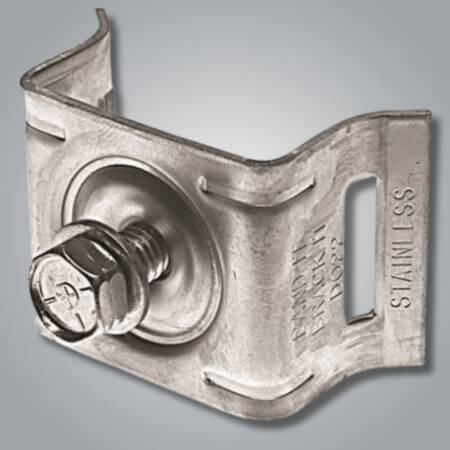

| D310 | Mounting bracket with 1 bolt, straight connection | 50 pieces |

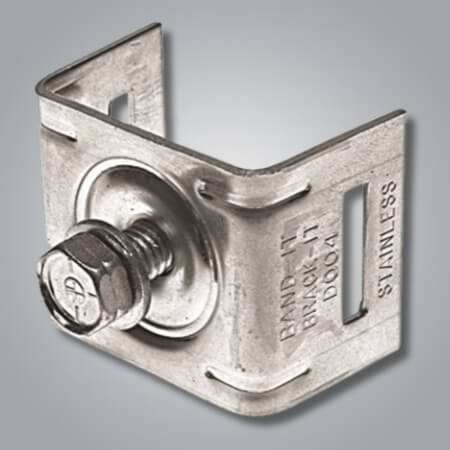

| D315 | Mounting bracket with 1 bolt, curved connection | 50 pieces |
| D302 | Spare bolt, M8 | 50 pieces |

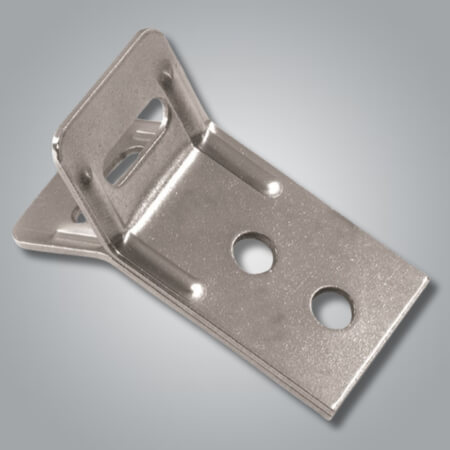

| DE096 | Y-shaped mounting bracket | 50 pieces |

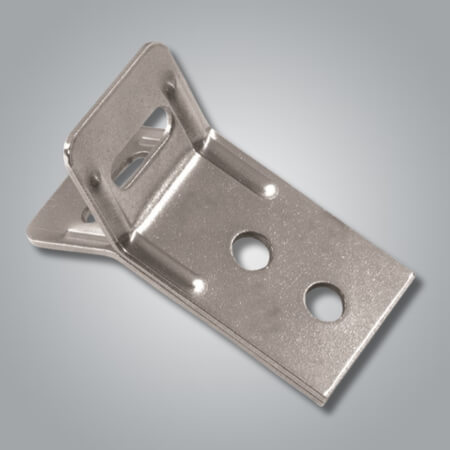

| DE097 | Y-shaped mounting bracket | 50 pieces |
| D025 | Mounting bracket | 50 pieces |

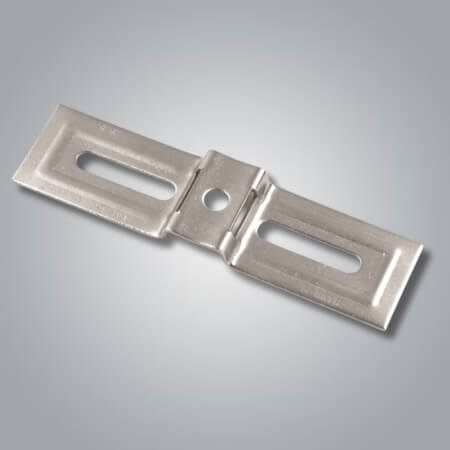

| D026 | Mounting bracket | 50 pieces |

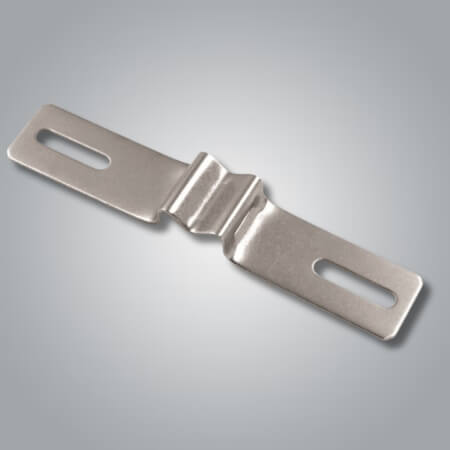

| MR190 | Mounting bracket | 50 pieces |

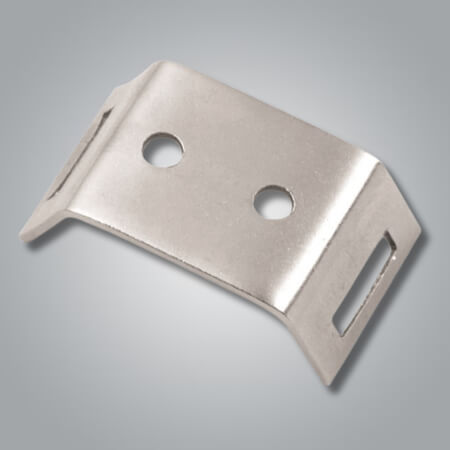

| DE0209 | Nameplate mounting bracket | 50 pieces |
Band-It certifications:
Type 201 Stainless Steel (EN 1.4372)
Type 201 is an austenitic chromium-nickel-manganese steel with excellent tensile properties. It offers good resistance to oxidation and many mild to moderate corrosive agents. Type 201 is used where the highest strength is required. It is the most commonly used material by BAND-IT.
Applications for Band-It stainless steel fastening materials
The applicability of fastening materials is virtually usable in every market:
Automotive
Construction & Infrastructure
Defense & Militairy mobility
Electrical & Installation Technology
Energy & Utility
Industrial machines
Aerospace
Oil & Gas
Marine & Offshore
Railway
Truck, Bus & Offroad vehicles
Cabinet construction
